Turbo Chameleon 64

From C64-Wiki
Jump to navigationJump to search
Stub This article is very short and not very detailed. Please help to improve it.
Turbo Chameleon 64
Turbo Chameleon 64 with SD card.
Device Name: Turbo Chameleon 64
Manufacturer: Individual Computers
Release Price: €249
Released: 2011
Discontinued:
Processor: Altera Cyclone III EP3C25E144C8N (FPGA)
Architecture: 8-bit
Clock Speed:
Opcodes: All 6510 opcodes
Support Chips:
  • Atmel AT90USB162 (Microcontroller)
  • Xilinx XC9672XL-TQG100 (FPGA)
RAM: 32 MB SRAM
ROM: 16 MB (Flash)
Expansion:
  • Firmware updates/mods
  • Docking port in standalone mode.
  • Real Time Clock
  • RR-Net
Installation:
  • External cartridge
  • Standalone device
License:
Manual:
Info:
  • The Turbo Chameleon 64 is still in active development.
  • There are no plans for a C128 version.
  • Not binary compatible with the SuperCPU

The Turbo Chameleon 64 is a multipurpose cartridge that can be used in the expansion port of the c64 or as a stand alone device.

The Turbo Chameleon 64 began as a project to create a cartridge that would give the Commodore 64 VIC-II VGA support. Then called VGA-64 the project quickly grew with additional features beyond VGA support. Eventually most of the features now associated with the Turbo Chameleon 64 fell into place and the project was renamed because of its far wider scope than initially envisioned.

Features[edit | edit source]

Hardware[edit | edit source]

Package.
CDTV remote control (since December 2013).

Interfaces[edit | edit source]

  • VGA-Connector
  • MMC/SD card slot
  • Infrared receiver for CDTV remote control
  • Connectors for PS/2 keyboard, PS/2 mouse and IEC bus
  • USB for power in stand alone mode
  • Internal connector for RR-Net2 or RR-Net MK3 networking cards
  • USB connection to a PC for easy updates, cross-debugging and data transfer
  • 3.5 mm stereo audio jack

Emulation[edit | edit source]

  • 1541 compatible diskdrive, disk images on the SD card can be mounted
Supported formats: .D64, .G64, .T64(read-only)
  • Stereo SID
  • REU with up to 16 MByte ram
  • GeoRAM up to 4 MByte ram
  • In stand alone mode the turbo chameleon works as a full c64 reimplementation

Extras[edit | edit source]

Chameleon 64 with docking station.
Stand-Alone.
Supported formats: .sid, .wav, .mus, .str
  • Image-Viewer.
Supported Formats: .koa, .rpm, .cdu, .blp, .pmg, .art, .ocp, .ddl, .hed, .hpi
  • Text-Viewer C= +T .
Supported Formats: .txt, .nfo

Modis[edit | edit source]

Chameleon 64 on SX-64.

GUI[edit | edit source]

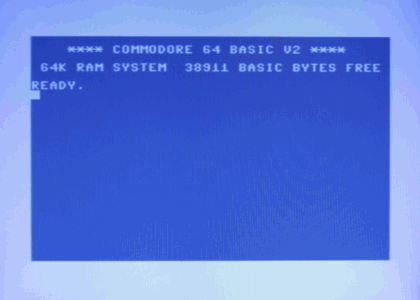

Chameleon menu animation (core version: 8h beta).

Accessories[edit | edit source]

Docking station.
