The following article shows a short overview of the C64 memory map (pages and memory addresses) as seen by its CPU. The address space may look different from the view of other chips such as the VIC.

This overview shows the status after power on of the C64 in the standard memory configuration ($37/55 in memory address $01, no cartridge).

Detailed descriptions of every memory area can be found in the associated articles.

The memory management is implemented mostly by the C64 PLA.

Overview[edit | edit source]

Commodore 64 Memory Map Overview

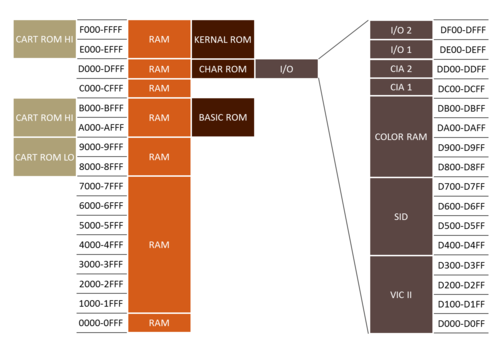

The diagram on the right displays the addressable locations, and therefore the likely layout, of all memory within the C64. The following notes are meant to be cursory and provide direction to more detailed accounts.

Configurations[edit | edit source]

The default configuration is for KERNAL ROM, I/O, BASIC ROM and the remaining RAM banks to be visible to the CPU. All configurations depend upon the state of latch bits set in the Programmable Logic Unit (PLA). The 7 distinct RAM banks are the smallest zones which can be bank switched.

ROM vs RAM[edit | edit source]

If ROM is visible to the CPU during a write procedure, the ROM will be read but, any data is written to the the underlying RAM. This principle is particularly significant to understanding how the I/O registers are addressed.

Cartridge ROM[edit | edit source]

If cartridge ROM is present it can be located in up to three addressable locations. However, only two 8 kByte banks can be seen by the CPU at any time.

BASIC RAM[edit | edit source]

The BASIC program storage space crosses the boundaries of RAM zones, sitting between $0800-$9FFF (38911 BASIC bytes)

Memory Details[edit | edit source]

The exact content and purpose of each memory bank can be found in the RAM Table, ROM Table and I/O Table below.

RAM Table[edit | edit source]

Hex Address Dec Address Page Contents
$0000-$00FF 0-255 Page 0 Zeropage addressing
$0100-$01FF 256-511 Page 1 Enhanced Zeropage contains the stack
$0200-$02FF 512-767 Page 2 Operating System and BASIC pointers
$0300-$03FF 768-1023 Page 3 Operating System and BASIC pointers
$0400-$07FF 1024-2047 Page 4-7 Screen Memory
$0800-$9FFF 2048-40959 Page 8-159 Free BASIC program storage area (38911 bytes)
$A000-$BFFF 40960-49151 Page 160-191 Free machine language program storage area (when switched-out with ROM)
$C000-$CFFF 49152-53247 Page 192-207 Free machine language program storage area
$D000-$D3FF 53248-54271 Page 208-211
$D400-$D7FF 54272-54527 Page 212-215
$D800-$DBFF 55296-56319 Page 216-219
$DC00-$DCFF 56320-56575 Page 220
$DD00-$DDFF 56576-56831 Page 221
$DE00-$DFFF 56832-57343 Page 222-223 Reserved for interface extensions
$E000-$FFFF 57344-65535 Page 224-255 Free machine language program storage area (when switched-out with ROM)

ROM Table[edit | edit source]

Cartridge ROM only becomes resident if attached to the expansion port on power-up. It is included for completeness as a record of the addresses it occupies as a ROM bank.

Hex Address Dec Address Page Contents
$8000-$9FFF 32768-40959 Page 128-159 Cartridge ROM (low)
$A000-$BFFF 40960-49151 Page 160-191 BASIC interpretor ROM or cartridge ROM (high)
$D000-$DFFF 53248-57343 Page 208-223 Character generator ROM
$E000-$FFFF 57344-65535 Page 224-255 KERNAL ROM or cartridge ROM (high)

I/O Table[edit | edit source]

Hex Address Dec Address Page Contents
$0000-$0001 0-1 - CPU I/O port - see Zeropage
$D000-$D3FF 53248-54271 Page 208-211 VIC-II registers
$D400-$D7FF 54272-55295 Page 212-215 SID registers
$D800-$DBFF 55296-56319 Page 216-219 Color Memory
$DC00-$DCFF 56320-56575 Page 220 CIA 1
$DD00-$DDFF 56576-56831 Page 221 CIA 2
$DE00-$DEFF 56832-57087 Page 222 I/O 1
$DF00-$DFFF 57088-57343 Page 223 I/O 2
