Turtle Graphics Interpreter

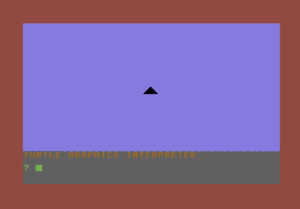

Start screen.
Developer Irwin Tillman
Publisher COMPUTE!s Gazette
Release 1984
Plattform C64
Genre Programming Language Logo
Operation C64-icon.png
Media Icon disk525 2.png, Tape-icon.png, Listing
Language Language:english
Information

Turtle Graphics Interpreter (short: TGI) is an interpreter for LOGO programming for the C64, that was first published in Compute!'s Gazette issue October 1984 and developed by Irwin Tillman. It is a fully LOGO interpreter, that was programmed complete in BASIC. With the TGI the user can create easy and fast HIRES computer graphics and so learning to programming a computer.


Description[edit]

Turtle Graphics Interpreter contains this three program listings:

  • TURTLE GRAPHICS - The "Turtle Graphics Boot" program
  • TURTLE GRAPHICS 1 - "Turtle Graphics Interpreter"
  • TURTLE GRAPHICS 2 - "Turtle Data"

"It's an excellent learning tool for children, and it offers a new graphics capacity for all ages. For disk or tape users."[1]

The program TGI is a in the painting mode a little bit slowly!

The "Turtle Graphics Boot" program.


First Steps[edit]

Our first graphic paintings with TGI.
Some of the demo graphics from the TGI Logo Work Disk: SYDSTAR, STAR and WINDOW.
Other demo graphics: TwoPentas, HONEYCOMB and ARROW.

After loading and running the "Turtle Graphics Boot" program loads the two other programs into the memory. Then the start screen appears.

The screen has two sections:

  • In the upper section, you see in the middle of this screen the turtle as a triangle in black color (default) in position 0,0.
  • In the lower section, you see a text field with 5 lines for input your commands for moving the turtle for painting, editing the graphic screen, procedures and files. To input a command you write the command behind the  ? .

The Turtle Graphics interpreter recognizes 30 commands, some of which can be abbreviated.


In LOGO is a command or a few combined commands are a procedure. A procedure can also used in other procedures, that gives a new procedure. Procedures can saved and loaded in TGI or deleted from the memory.

For example: The procedure hexagon (for painting a hexagon) can be combined to another procedure called honeycomb, that contains 7 hexagons.

This explains, that with simple symbols, which are combined together, complex graphics are drawn.


The defaults colors are
  • Border color: red (2)
  • Text background color: light blue (14)
  • Text color (for command line): green (5)
  • Pen color: blue (6)
  • Turtle color: black (0)


Also it exists a "TGI Logo Work Disk", on which are 7 program examples (in TGI and LOGO called: procedures):

BOX
STARSQUARE
STAR
TRIANGLE
SAMPLEDESIGNS
SYDFLOWER
SYDSTAR

This procedures can loaded into TGI with the command LOAD FILENAME and start with the PROCEDURE_NAME.

Example
  • LOAD BOX
  • BOX


Commands[edit]

This is from COMPUTE!'s Gazette Magazine and Disk October 1984 (Issue 16 Vol. 2, No. 10):

Here are the list of the 30 TGI commands and its abbreviations.

It is important, that between the commands and paramters in numbers are a space!

Example: FD 50


Turtle Commands and Primitives[edit]

Command:         Short:  Command Example:         Remarks:
=================================================================
FORWARD          FD	FORWARD 50

RIGHT            RT	RIGHT 90

LEFT             LT	LEFT 90

REPEAT           RP	REPEAT 4 [FD 50 RT 90]

PENUP            PU	-                        stops turtle from drawing

PENDOWN          PD	-                        starts turtle drawing (default)

PENERASE         PE	-                        turtle erases lines and dots if PENDOWN

PENDRAW          PW	-                        turtle draws if PENDOWN (returns to current PENCOLOR) (default)

PENCOLOR         PC	PENCOLOR 0               with 0-15 like the C64 colors; pencolor changes the color of the entire picture, thereby avoiding Commodore color conflicts (where one color bleeds into another)

BACKGROUNDCOLOR  BC	BACKGROUNDCOLOR 0        with 0-15 like the C64 colors for changing background color

TURTLECOLOR      TC	TURTLECOLOR 0            with 0-15 like the C64 colors for changing turtle color

SHOWTURTLE	  ST	-                        (default)

HIDETURTLE	  HT	-

CLEARSCREEN	  CS	-                        sets turtle position to 0,0 heading 0 (HOME) & clears graphics screen

HOME		  -	-                        sets PENUP mode, sends turtle to position 0,0 heading 0, then returns to whichever mode turtle was in before

CLEAN		  -	-                        clears graphics screen but does not send turtle HOME

SETHEADING	SETH	SETHEADING 0 / SETHEADING -90 sets turtle's heading

SETPOSITION	SETP	SETPOSITION 0 0 / SETPOSITION -50 -50 sets PENUP mode, sets turtle's X and Y coordinates, then returns to whichever mode turtle was in before

PRINTHEADING	  -	-                         prints turtle's heading

PRINTPOSITION	  -	-                         prints turtle's X and Y coordinates

QUIT		  -	-                         quits TGI but does not reset computer or erase program or procedures in memory.

                                                 CONT will continue from where you were.

                                                 RUN will clear memory and restart TGI for another user.

Editing Commands[edit]

Command:    Short:     Command Example:                   Remarks:
===============================================================================================================
DEFINE	        -	DEFINE PROCEDURENAME               enters input mode, displaying procedure name folled by a question mark and a space, allowing
                                                           two lines of procedure to be input; 80 characters less the length of procedure name and less the
                                                           question mark and space following it. Interestingly, it allows redefining of preset commands and
                                                           primitives

ERASE		-	ERASE PROCEDURENAME                clears memory of specific procedures

ERASEALL	-	-                                  clears memory of all procedures

NAMES		-	-                                  lists names of all procedures in memory, will overrun text area

PRINTPROCEDURE	PPROC	PRINTPROCEDURE PROCEDURENAME       lists the contents of specific procedure, will overrun text area

RENAME	        -	RENAME OLDPROCNAME NEWPROCNAME     renames a procedure

File Commands[edit]

It is recommend not to use quotes!

LOAD

Reads in a set of procedures from a file on disk, quotes MUST be consistent; if SAVEd with single or double quotes, can only be LOADed with single or double quotes. Examples:

LOAD FILENAME
LOAD "FILENAME
LOAD "FILENAME"
SAVE

Saves a set of procedures in a file on disk, quotes MUST be consistent; if SAVEd with single or double quotes, can only be LOADed or SCRATCHed with single or double quotes. Examples:

SAVE FILENAME
SAVE "FILENAME
SAVE "FILENAME"
SCRATCH

Erases a file on disk, quotes MUST be consistent; if SAVEd with single or double quotes, can only be SCRATCHed with single or double quotes. Examples:

SCRATCH FILENAME
SCRATCH "FILENAME
SCRATCH "FILENAME"
Notes

The files are saved as SEQ file with the FILENAME and the file type .TURTLE on disk.
If you save a file as BOX the directory of the disk shows: BOX.TURTLE
The FILENAME is mostly the PROCEDURE_NAME!

Key Commands[edit]

  • CLR/HOME : Clears the text portion of the screen and homes the cursor (regardless of whether the SHIFT key is pressed).
  • F1 : Changes the border color.
  • F3 : Changes the text-background color.
  • CRSR keys : Trying to move from the text window into the hires screen will be treated as a CLR/HOME.
  • RUN/STOP : Break the TGI and you are back in BASIC. Restart with CONT.



Note: CTRL +G  on most Logo's will break the turtle out of a loop. In Turtle Graphics Interpreter, this option doesn't exist. However it can be replicated by pressing RUN/STOP  and typing GOTO 150. This will not clear the memory and all your procedures will still exist. If you hit RUN/STOP  and RESTORE , type GOTO 120 to bring back the drawing screen (the screen will be CLEANed, and the turtle will not be HOMEd.) Again, your procedures will be intact. It is recommended that you save your procedures and restart the program, as it can become unstable.


Program Examples[edit]

Example graphics of TGI. The turtle is the red triangle.

This code examples are from COMPUTE!'s Gazette Magazine and Disk October 1984 (Issue 16 Vol. 2, No. 10, pages 90-94):

  • Rectangle: RP 2 [FD 80 RT 90 FD 30 RT 90]
  • Hexagon: RP 6 [FD 100 RT 60]
  • Pentagon: RP 5 [FD 100 LT 72]
  • Pentagram: RP 5 [FD 161.8 LT 144]
  • Two pentas: SETP -60 -80 SETH 90 PENTAGON LT 36 PENTAGRAM
  • Arrow: RECTANGLE LT 90 FD 15 LT 135 RP 2 [FD 42.4 LT 90] LT 45 FD 15 PE FD 28 PW
  • Honey comb: SETP -30 30 SETH 330 RP 6 [RP 6 [FD RT 60] RT 120 PU FD 25 LT 60 PD]
  • Honey comb2: RP 6 [FD 25 RT 60] RT 120 PU FD 25 LT 60 PD

Note: Also in the demo file on the TGI Logo Work Disk as: SAMPLEDESIGNS


The example SYDFLOWER.
TGI Logo Work Disk

This program examples are on the TGI Logo Work Disk and must load into TGI. The loaded procedure names are in small words. To run a procedure input its procedure name.

  • BOX : box
  • STARSQUARE : square - window - star - simplestar
  • STAR : star
  • TRIANGLE : triangle
  • SAMPLEDESIGNS  : arrow - arrows2 - rectangle - honeycomb - honeycomb2 - hexagon - pentagon - pentagram - twopentas (this figures are also shown as program examples!)
  • SYDFLOWER : stem - ground - leaves - move - triangle - blossom - DAISY (last procedure for painting all procedures!)
  • SYDSTAR : star


References[edit]

  1. COMPUTE!'s Gazette October 1984 Issue 16 Vol. 2, No. 10, p. 90-94
